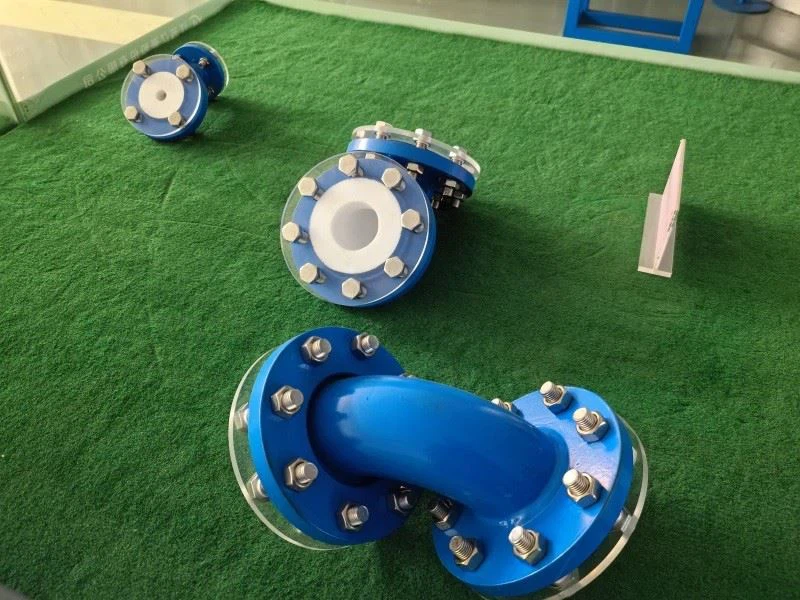

PTFE Elbow

PTFE Elbow is a pipe fitting made of PTFE material, mainly used to change the direction of the pipe. PTFE is widely used in many industries such as chemical, pharmaceutical, and food processing due to its high temperature and low temperature resistance, corrosion resistance, and low friction coefficient. PTFE Elbow can ensure the safety and purity of the fluid during transportation, while reducing energy loss and wear.

1. Temperature from -50 to 230 °C
2. Full vacuum and/or high pressure service
3. Diameters from DN 15 (1/2'') to DN 1200 (48''), larger on demand
4. ANSI/ASME B16.5, DIN, JIS, GB (customized on demand)
5. Antistatic quality up to DN 400 (16 inches)
6. Food quality
7. PTFE lined elbows are molded and sintered, and the bonding strength between the liner and the metal shell is ≥5MPa
8. Corrosion resistance: 98% concentrated sulfuric acid, hydrofluoric acid, strong alkali, organic solvents

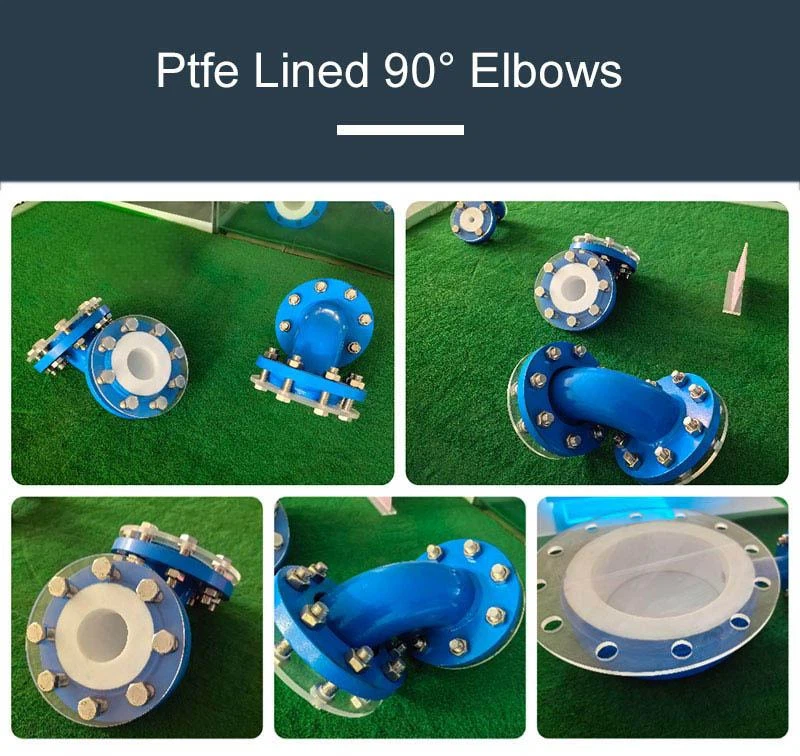

9. Customized services: non-standard angles (such as PTFE lined 90 degree elbows and PTFE lined 45 degree elbows), thickened lining, antistatic/conductive modification.

1. Production equipment and technology
PTFE lined die-casting sintering line, daily production capacity of 2,000 pieces, large elbow spinning machine, helium mass spectrometer leak detector, infrared thermal imager and other special equipment 150 sets, 100 special pipelines

2. Certification and quality control
Certification system: ISO 9001, ISO 14001, PED 2014/68/EU.

3. Quality control process

raw material testing, online wall thickness laser monitoring, 100% air tightness test

4. Supply and service capabilities
Cooperate with the US Korean Duojia Company to provide FOB/CIF/DDP terms.

5. Technical support
Free installation torque guide and 24-hour online technical consultation are provided.

6. After-sales and technical support
Provide a 1-year warranty, and an extended warranty plan can be provided for bulk orders.
Technical support team, remote guidance, installation and commissioning.
